| Filling Volume: | 20ml-500ml |
|---|---|
| Filling Precision: | ±1.0% |
| Capacity: | 30-100 pieces per min |
| Power: | 5-20KW customized |
| Pressure: | 0.6～0.8Mpa |
| Air consumption pressure: | 0.8～1.2m³/min |
| Sealing temperature: | 0～400 degrees adjustable |
| Voltage: | 220V/380 50HZ or customized |
| Size: | 4500*850*2000mm |
| Weight: | 1000kg |
*We respect your confidentiality and all information are protected.

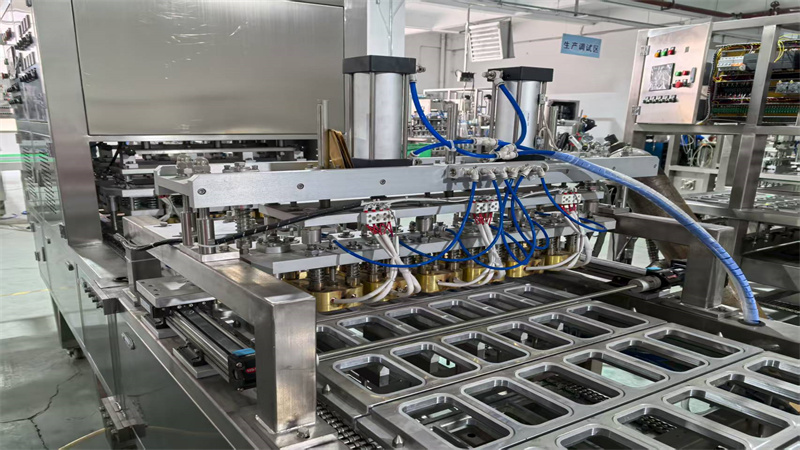

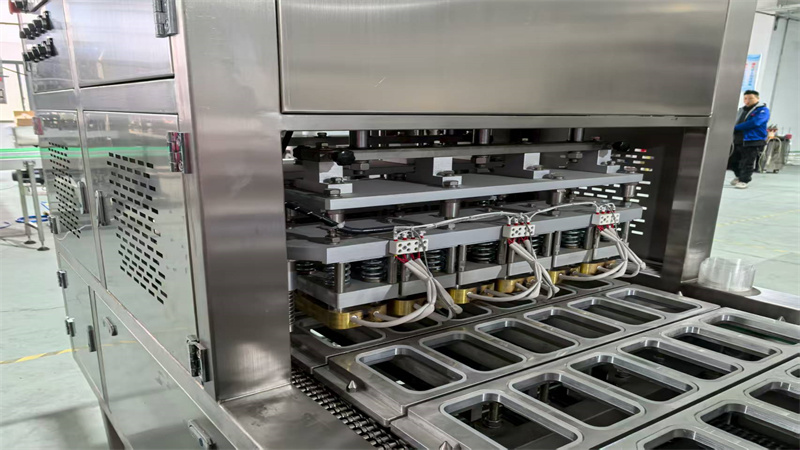

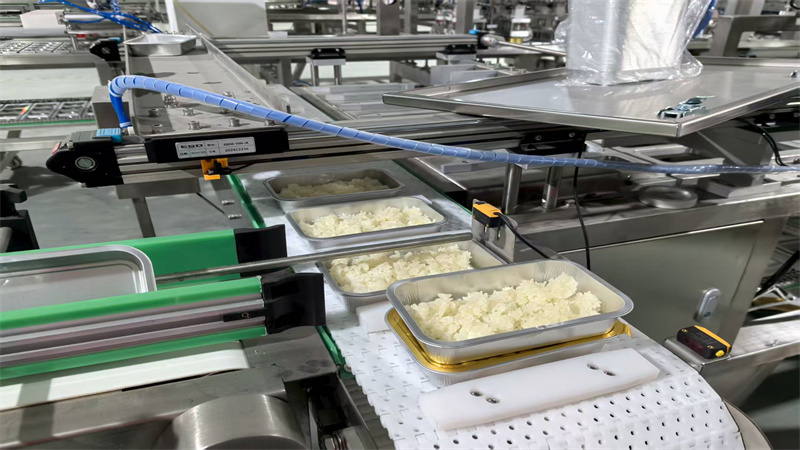

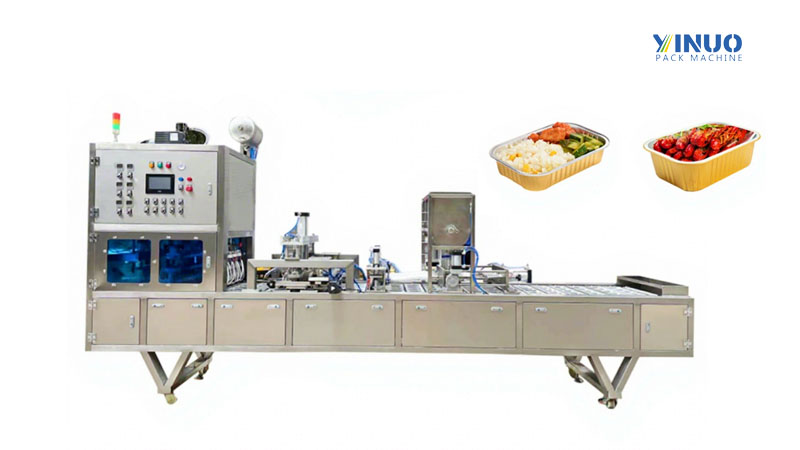

The aluminum foil tray sealing machine for airline meals is a high-precision, automated packaging system designed to meet the rigorous standards of in-flight catering. Its primary objective is to ensure food safety, preserve flavor, and efficiently execute large-scale production tasks. An exceptional sealing machine must possess key capabilities such as high speed, intelligence, precision, and hygiene. Yijianuo machinery company's automatic aluminum foil tray filling and sealing packing machine is used to fill food like sauce paste liquid into the aluminum tray and then seal the foil film.
Machine parameters:
| Item | Typical Range | Description |
| Power Supply | AC 380V / 50Hz (Industrial Standard) | Also can be customizd |
| Power Consumption | 3.5 kW – 12 kW | Generally, larger machines with more extensive functionality require higher power input |
| Air Source | 0.65 – 1.25 MPa | Used to actuate pneumatic components, such as air cylinders. |
| Packaging Speed | 2,500 – 8,000 trays/hour | The common speed range; high-end models offer even faster speeds |
| Machine Weight | Approx. 1500 – 3000 kg | Reflects the equipment's robust construction and stability |
| Dimensions | Approx. 45000 × 800 × 1650 mm | Space must be allocated based on the specific production line layout. |
| Temperature Control Range | 0 – 400°C (Adjustable) | Accommodates sealing films of varying thicknesses and material compositions. |
Our aluminum foil tray/cup filling and sealing machine has excellent customization capabilities and can be precisely produced according to the tray size you provide. Whether your aluminum foil cup/tray is a regular square, round, or unique special-shaped design, and regardless of the size, our experienced technical team can ensure that the equipment is perfectly compatible with your aluminum foil cup/tray by targeted design and adjustment of key equipment components such as filling heads, sealing molds, and conveyor tracks.

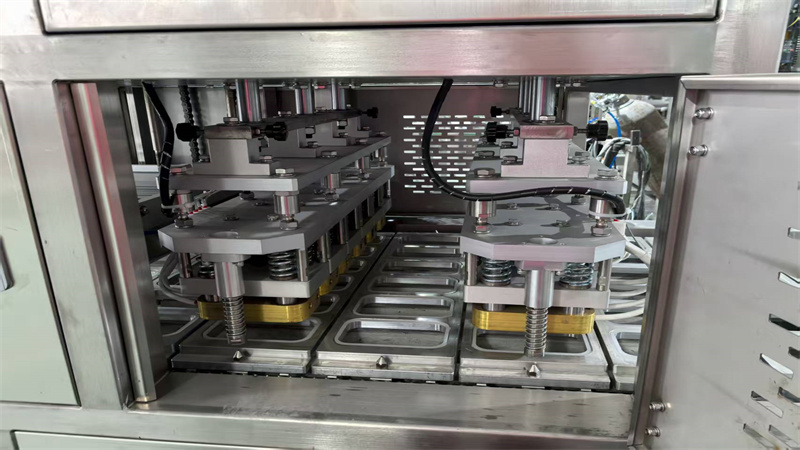

From the connection between the storage tank and the filling head to the hot pressing or cold sealing parameter setting of the sealing part, each link will be optimized according to the size characteristics of the aluminum foil box. To ensure that the material falls accurately into the box during filling to avoid spillage; when sealing, the aluminum foil box cover fits tightly with the box body to achieve an ideal sealing effect, effectively prevent leakage of contents and external contamination, and extend the shelf life of the product. This customized service can greatly improve production efficiency, reduce losses caused by equipment mismatch, and provide strong support for your production needs.
